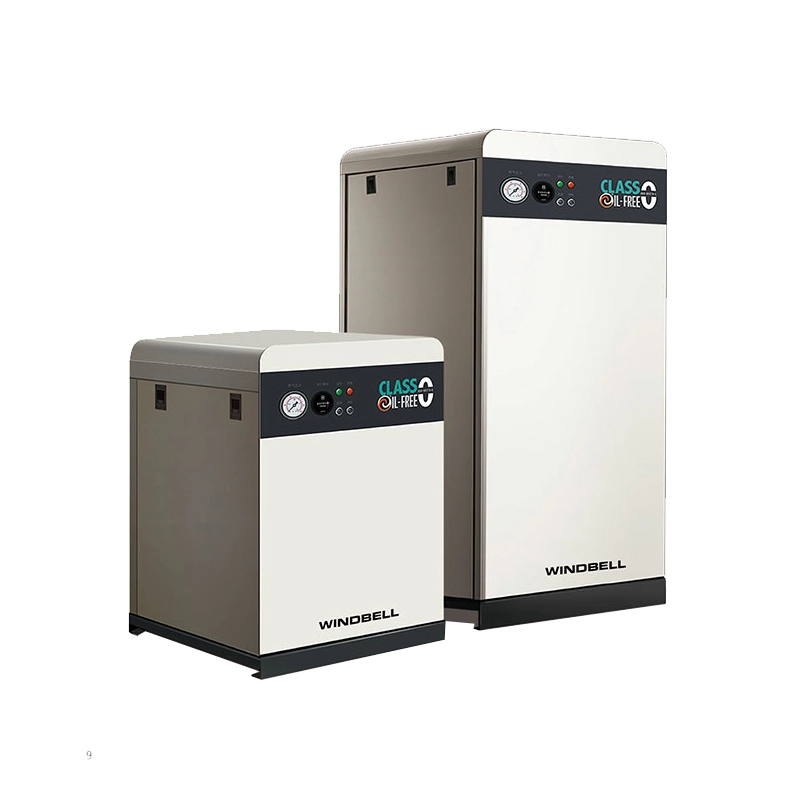

WOS SERIES 2.2-5.5kW Screw Air Compressor
Product Descriptions
PRODUCT FEATURES
Structure of WOS 2.2-5.5kW Screw Air Compressor
APPLICATION OF PRODUCTS
Our in-house designers and engineers have produced countless great designs for customers from different industries
Structural Composition Of Main Uni
The orbiting scroll rotates in the order of 1-2-3-4 as shown in the diagram, the air issucked into the space between the orbiting scroll and the stationary scroll, the volume ofcrescent compression chamber gradually decreases, and then the air is discharged fromthe exhaust port at the center of the stationary scroll after being compressed.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Tank Capacity | Noise Level | Weight | Dimension (mm) | ||
| No. | bar | cfm | hp | L | Db | Kg | L | W | H |
| WOS2.2 | 8 | 8.5 | 3 | 40 | 53+/-3 | 115 | 540 | 500 | 1095 |
| 10 | 7.05 | ||||||||
| WOS3.7 | 8 | 14.5 | 5 | 40 | 55+/-3 | 125 | 540 | 500 | 1095 |
| 10 | 12 | ||||||||
| WOS7.5 | 8 | 29 | 10 | / | 60+/-3 | 350 | 1200 | 700 | 1100 |
| 10 | 24 | ||||||||
| WOS11 | 8 | 42 | 15 | / | 61+/-3 | 500 | 1250 | 740 | 1280 |
| 10 | 36 | ||||||||
| WOS15 | 8 | 58 | 20 | / | 62+/-3 | 550 | 1250 | 740 | 1650 |
| 10 | 48 | ||||||||
| WOS18 | 8 | 72 | 25 | / | 62+/-3 | 650 | 1250 | 740 | 2000 |
| 10 | 60 | ||||||||
| WOS22 | 8 | 86 | 30 | / | 63+/-3 | 900 | 1600 | 1250 | 1650 |
| 10 | 72 | ||||||||
| WOS30 | 8 | 115 | 40 | / | 64+/-3 | 1050 | 1600 | 1250 | 2000 |
| 10 | 96 | ||||||||
| WOS37 | 8 | 145 | 50 | / | 65+/-3 | 1250 | 1600 | 1250 | 2000 |
| 10 | 120 | ||||||||
