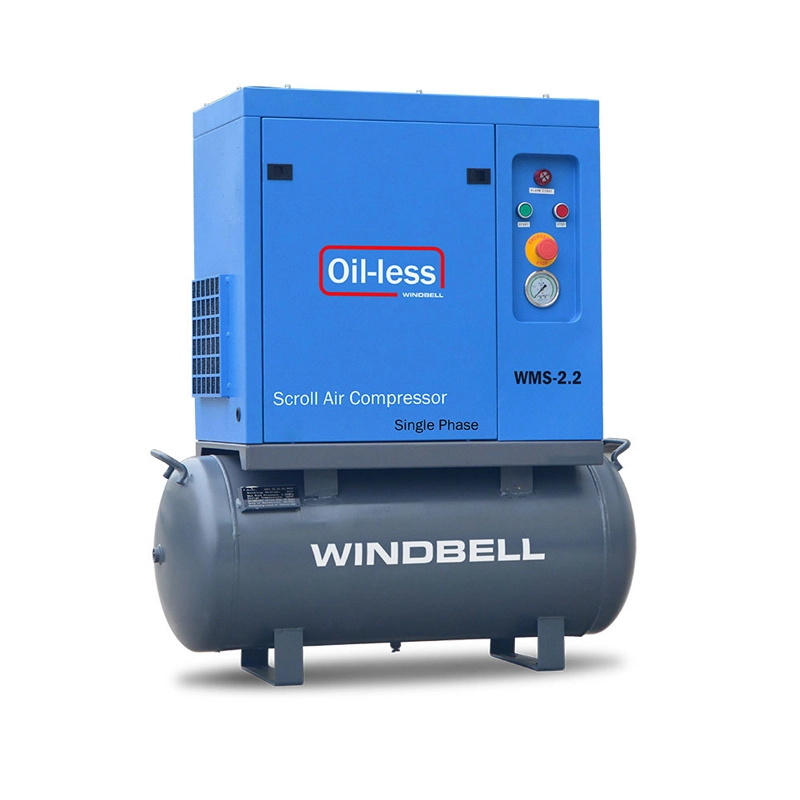

WMS-2.2 Oil Less Electric Air Scroll Compressor
- OEM/ODM Customized Services
5.0
Model:
WMS-2.2
Capacity:
80 L/min
Working pressure:
8 Bar
Motor power:
2.2KW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Descriptions
WMS-2.2 Oil Less Electric Air Scroll Compressor is powered by one single phase 2.2 kW motor which can produce 320L/min compressed air under a pressure of 8 bar.
It adopts an air cooling method and the start-up method is direct start. Equipped with 80L horizontal air storage tank.
The Oil Less Electric Air Scroll Compressor is with a wide applications, such as enterprises, factory processing, laboratories, furniture industry and building mat.
图片1 拷贝
Product Video
Oil Less Air Scroll Compressor Advantages
1.Compact design makes it cover small area.
2.Less components ensure long lifetime and less maintenance.
3.The scroll compressor is Low noise.
4.Long maintenance interval.
5.Environmental protection. Low noise, light weight, low vibration, low energy consumption, long life, stable continuous gas delivery, clean air.
Structure Of Oil Less Air Scroll Compressor
Product Details
Integrated scroll air end
The advantages for integrated scroll air end is small size , low noise long lifetime.
Single phase electrical motor
Comparing to three phase motor , single phase will be more convenient .
Intake valve
The intake valve adjusts the compressor Min. pressure during idle running and Max. saving upon start-up.
Dust proof design
Dust proof design ensures clear air enter in compressor. Easy maintenance.
TECHNICAL SPECIFICATIONS
| Air end | Working pressure | Bar | 8 |
| Capacity | L /min | 320 | |
| Motor | Motor power | KW/HP | 2.2/3 |
| Voltage | V/Hz | 220/50 | |
| Protection Grade | IP54 | ||
| Starter | Direct | ||
| Insulation grade | F | ||
| Whole unit | Driving type | Direct | |
| Tank capacity | L | 80 | |
| Lubrication oil capacity | L | 1.8 | |
| Max Ambient Tempeature | OC | 45 | |
| Cooling Method | Air | ||
| Lubrication Oil Grade | 46 | ||
| Air Outlet Diameter: | " | G1/2 | |
| Dimension | mm | 870×385×1040 | |
| Weight | KG | 120 |
