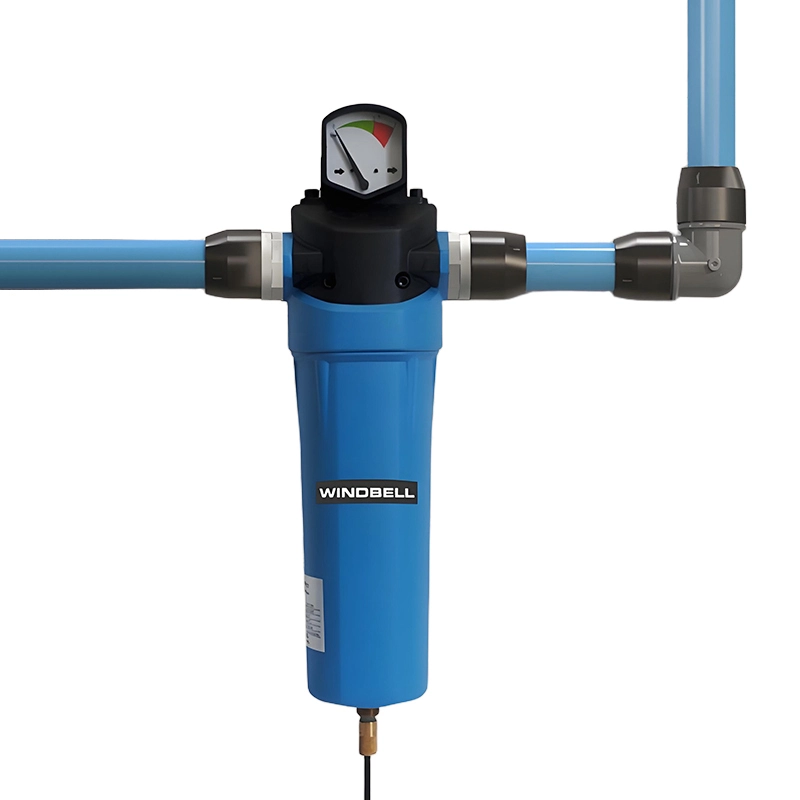

WBF Compressed Air Filter 1.2 - 49 m/3 min 0 -16 Bar Oil Water Separator
5.0
Model:
WBF350
Capacity:
1.2-49.0 m3/min
Working pressure:
0-16 bar
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Descriptions
Normally compressed air contains highconcentrations of dust, oil, moisture and therimpurities.These contaminants can lead to high-maintenance costs and result in damageto equipment and finished products. Our filters have been specifically designed toprevent these problems, by offering a widerange of filters for compressed air able tosatisfy the most various industry needs.The high efficiency of the elements whichis able to offer a high capability of retention(99,999%) and very low pressure drops.The final result is an extremely purifiedcompressed air and low operating costs.
Separator body in aluminum,chromo phosphate and externallypowder painted.The closure provided by sealcannot be opened while the filter is underpressure, offering additional protection.
In order to keep the compressed air qualitystandards, filter elements have to be replacedevery 6/12 months depending on ambient andcompressor.
● The maintenance of high performances;
● Quality of compressed air in compliance withinternational standard;
● Low operating costs;
● Protection of components and processstdownstream.Omittedreplacement ofelements causes anincrease of pressuredrop through system and subsequently anincrease of operating costs;
Technical Parameters
| Model | Flow Rate | Connection | Dimension (mm) | ||||
| No. | cfm | m3/min | inch | A | B | C | D |
| WBF0120 | 42 | 1.2 | 3/4 | 100 | 214 | 181 | 110 |
| WBF0200 | 70 | 2.0 | 3/4 | 100 | 275 | 242 | 145 |
| WBF0300 | 106 | 3.0 | 3/4 | 100 | 275 | 242 | 175 |
| WBF0350 | 124 | 3.5 | 1 | 130 | 320 | 273 | 185 |
| WBF0500 | 177 | 5.0 | 1.5 | 130 | 320 | 273 | 185 |
| WBF0750 | 265 | 7.5 | 1.5 | 130 | 402 | 355 | 230 |
| WBF1050 | 370 | 10.5 | 1.5 | 130 | 402 | 355 | 270 |
| WBF1450 | 512 | 14.50 | 2 | 180 | 527 | 465 | 390 |
| WBF2200 | 777 | 22.00 | 2 | 180 | 707 | 645 | 570 |
| WBF2500 | 880 | 25 | 2.5 | 225 | 857 | 779 | 570 |
| WBF3000 | 1059 | 30 | 2.5 | 225 | 857 | 779 | 630 |
| WBF3500 | 1235 | 35 | 3 | 225 | 1007 | 929 | 700 |
| WBF4500 | 1589 | 45 | 3 | 225 | 1007 | 929 | 700 |
| WBF4900 | 1730 | 49 | 4 | 225 | 1007 | 929 | 700 |
| WBFL2200 | 777 | 22 | DN65 | 310 | 707 | 645 | 110 |
| WBFL2500 | 880 | 25 | DN65 | 360 | 857 | 779 | 570 |
| WBFL3000 | 1059 | 30 | DN80 | 360 | 857 | 779 | 630 |
| WBFL3500 | 1236 | 35 | DN100 | 360 | 1007 | 929 | 700 |
| WBFL4500 | 1589 | 45 | DN80 | 360 | 1007 | 929 | 700 |
| WBFL4900 | 1730 | 49 | DN100 | 360 | 1007 | 929 | 700 |
