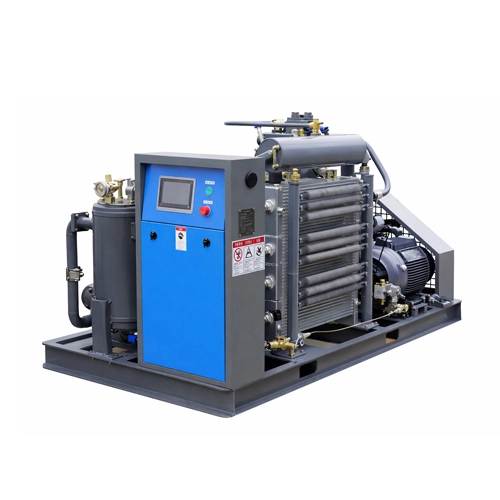

High Pressure Booster Air Compressor
- OEM/ODM Customized Services
Product Descriptions
WAE range booster compressor is combined with screw air compressor and booster. Medium pressure : 30-40 barHigh pressure:250-400 bar
Structure Of Booster Air Compressor
Specific design offers optimum performance and saves 15% energy
Product Details
40bar high quality oil free air
High efficiency andenergy saving
Pressure stability
Low noise
No foundation installation, easy to move
Long operation life of spare parts, easyto purchase,low cost
Technical Parameters
| Model no. |
Power kw |
FAW m3/min |
Pressure bar |
Speed rpm |
Air Outlet |
Water inlet/outlet |
Weight kg |
Dimension mm |
| WAE-6.0/30-40 | 67 | 6.0 | 30-40 | 520 | DN40 | RC1-1/2" | 3000 | 2760*1500*1500 |
| WAE-8.0/30-40 | 85 | 8.0 | 30-40 | 560 | DN40 | RC1-1/2" | 3500 | 2760*1500*1500 |
| WAE-11.0/30-40 | 120 | 11.0 | 30-40 | 420 | DN40 | RC1-1/2" | 4400 | 3620*1800*2000 |
| WAE-13.0/30-40 | 135 | 13 | 30-40 | 460 | DN40 | RC1-1/2" | 4650 | 3620*2100*2000 |
| WAE-14.0/30-40 | 145 | 14.0 | 30-40 | 520 | DN40 | RC1-1/2" | 4850 | 3620*2100*2000 |
| WAE-16.0/30-40 | 185 | 16.0 | 30-40 | 480 | DN50 | RC2" | 5000 | 3620*2100*2000 |
| WAE-20.0/30-40 | 222 | 20.0 | 30-40 | 420 | DN50 | RC2" | 7000 | 4165*2150*2100 |
| WAE-25.0/30-40 | 250 | 25.0 | 30-40 | 520 | DN65 | RC2-1/2" | 8000 | 4590*2150*2100 |
| WAE-28.0/30-40 | 290 | 28.0 | 30-40 | 450 | DN65 | RC2-1/2" | 8500 | 4590*2150*2100 |
| WAE-30.0/30-40 | 310 | 30.0 | 30-40 | 500 | DN65 | RC2-1/2" | 10000 | 4590*2150*2100 |
| WAE-36.0/30-40 | 360 | 36.0 | 30-40 | 600 | DN65 | DN100 | 12000 | 6000*2300*2100 |
| WAE-40.0/30-40 | 410 | 40.0 | 30-40 | 680 | DN65 | DN100 | 13000 | 6500*2500*2300 |
| Model no. | Power KW |
FAD m3/min |
Pressure bar |
Speed rpm |
Air outlet | Weight kg |
Dimension mm |
| WAE-1.0/250 | 29.5 | 1.0 | 250 | 320 | RC1/2" | 3000 | 3100*1800*1600 |
| WAE-1.5/250 | 41 | 1.5 | 250 | 380 | RC1/2" | 3500 | 3100*1800*1600 |
| WAE-2.0/250 | 52 | 2.0 | 250 | 450 | RC1/2" | 3600 | 3600*2000*1600 |
| WAE-3.0/250 | 77 | 2.0 | 250 | 500 | RC1/2" | 3500 | 3600*2000*1600 |
| WAE-1.0/400 | 33 | 1.0 | 400 | 320 | RC1/2" | 3200 | 3100*1800*1600 |
| WAE-1.5/400 | 52 | 1.5 | 400 | 380 | RC1/2" | 3700 | 3600*2000*1600 |
| WAE-2.0/400 | 60 | 2.0 | 400 | 450 | RC1/2" | 3800 | 3600*2000*1600 |
| WAE-3.0/400 | 82 | 3.0 | 400 | 500 | RC1/2" | 4200 | 3600*2000*1600 |
Air Compressor Application
High-pressure air compressors are mainly used in breathing air supply, industrial equipment drive, food processing, agricultural spraying and automobile manufacturing.
Manufacturer Advantage
R&D team: 12 people/ QC team: 15 people;
Each screw air compressor is subjected to a series of tests before leaving Windbell factory.
We are a company combined with R&D, production and sales wholly. 20 Years OEM/ODM experiences.
24-month full machine warranty, 36-month air end warranty.
