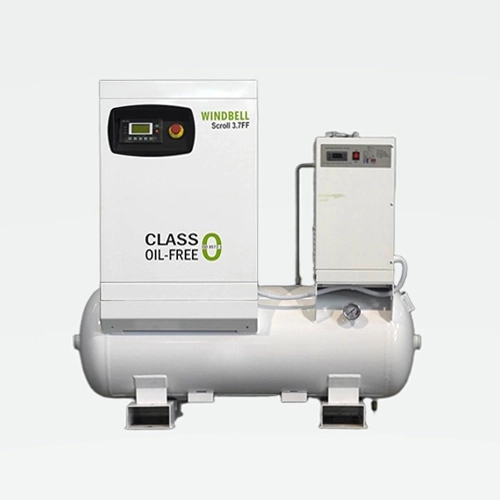

3 In 1 Compressor Oilless Scroll Air Compressor
- OEM/ODM Customized Services
Product Descriptions
PRODUCT FEATURES
APPLICATION OF PRODUCTS
Applications include: Electronics: chip packaging, PCB cleaning; Food and beverage: filling and packaging; Medical: power source for dental equipment and surgical instruments, etc.
Structural Composition Of Main Uni
The orbiting scroll rotates in the order of 1-2-3-4 as shown in the diagram, the air issucked into the space between the orbiting scroll and the stationary scroll, the volume ofcrescent compression chamber gradually decreases, and then the air is discharged fromthe exhaust port at the center of the stationary scroll after being compressed.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Tank Capacity | Noise Level | Weight | Dimension (mm) | ||
| No. | bar | cfm | hp | L | Db | Kg | L | W | H |
| WOS2.2 | 8 | 8.5 | 3 | 40 | 53+/-3 | 115 | 540 | 500 | 1095 |
| 10 | 7.05 | ||||||||
| WOS3.7 | 8 | 14.5 | 5 | 40 | 55+/-3 | 125 | 540 | 500 | 1095 |
| 10 | 12 | ||||||||
| WOS7.5 | 8 | 29 | 10 | / | 60+/-3 | 350 | 1200 | 700 | 1100 |
| 10 | 24 | ||||||||
| WOS11 | 8 | 42 | 15 | / | 61+/-3 | 500 | 1250 | 740 | 1280 |
| 10 | 36 | ||||||||
| WOS15 | 8 | 58 | 20 | / | 62+/-3 | 550 | 1250 | 740 | 1650 |
| 10 | 48 | ||||||||
| WOS18 | 8 | 72 | 25 | / | 62+/-3 | 650 | 1250 | 740 | 2000 |
| 10 | 60 | ||||||||
| WOS22 | 8 | 86 | 30 | / | 63+/-3 | 900 | 1600 | 1250 | 1650 |
| 10 | 72 | ||||||||
| WOS30 | 8 | 115 | 40 | / | 64+/-3 | 1050 | 1600 | 1250 | 2000 |
| 10 | 96 | ||||||||
| WOS37 | 8 | 145 | 50 | / | 65+/-3 | 1250 | 1600 | 1250 | 2000 |
| 10 | 120 | ||||||||
