WZS Range 2.2 5.5kW Air Compressor Tank Mounted 110L for Small Workshop
5.0
Model:
WZS2.2
Capacity:
0.28-0.32 m3/min
Working pressure:
8-10 bar
Motor power:
2.2kW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Descriptions

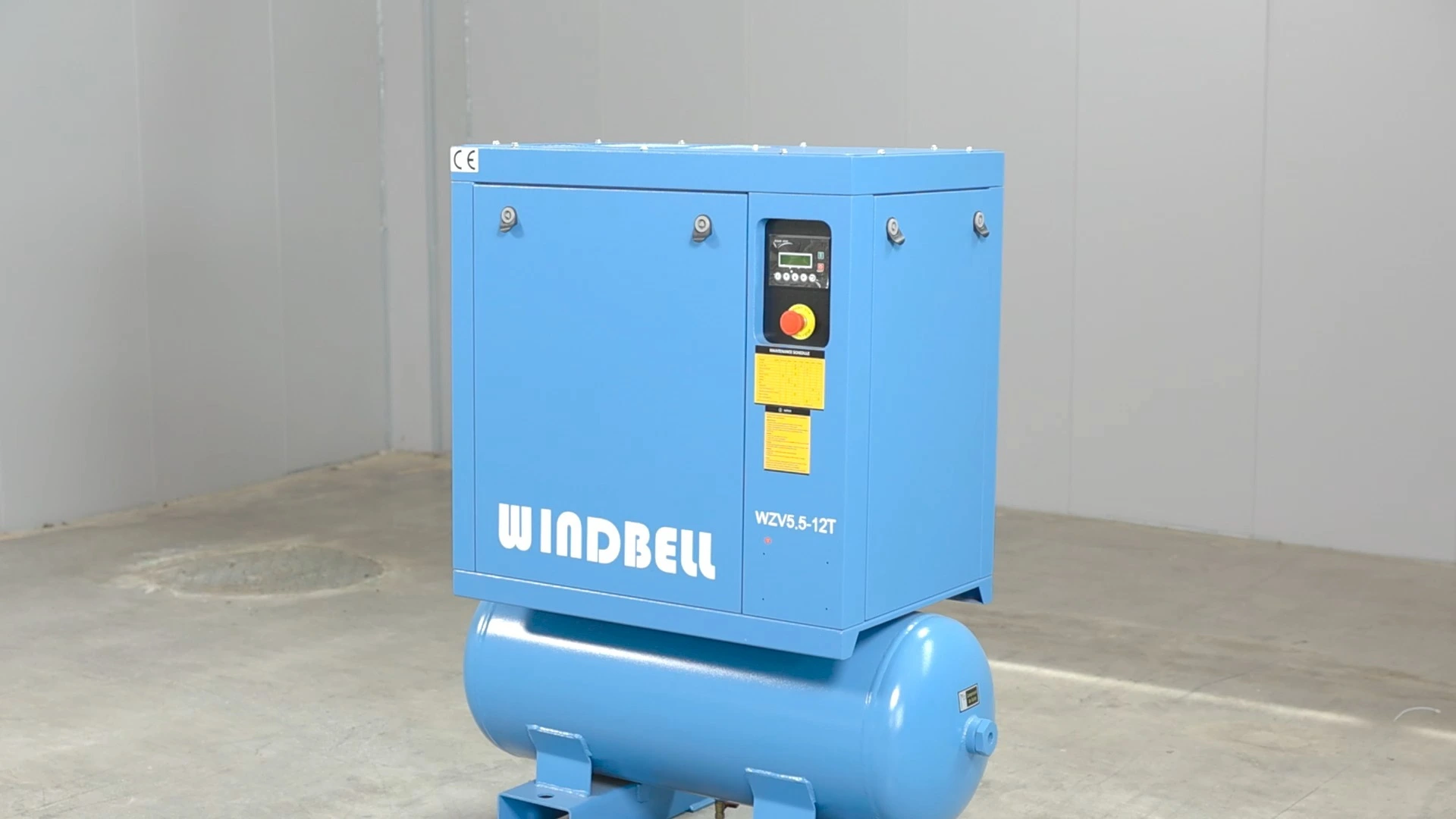

This compressor is mounted on one 110L tank, power available from 2.2-5.5kw, belt driven. Both fixed speed and variable speed type are available. They are perfect solution for small business, workshops and operattions that don't need compressed air very often.
wzv5
Product Video
Product Advange
● Clean production: The low oil content of 5 ppm helps protect yourequipment and products from oil contamination.
● Low Noise: The compressor operate at 61-67 decibels,which makes it a safe and comfortable point-of-usecompanion.
● Different options: You can choose between a base mount(withouttank) and a tank-mounted model.
● Single phase motor: 2.2kW/3hp compressor is powered by one singlephase electrical motor , it is one convenient forusing.
wzv-02
Structure Of WZV Air Compressor
Engineered, productive and auiet-these are the benefits of WBZ range compressors.They are the perfect solution forsmall business, workshops and operations that don't need compressed air often
Product Details
High Efficiency Airend
● High-efficiency and energy-saving screw compression host
● Guarantees longer lifetime of compressor components.
Modular Vector Inverters
● Featured modular vector inverters.Energy saving is achieved by controlling the speed of the inverter.
Oil air separator
● Low pressure drop.
● Efficient separation, low oil content.
Air Tank
● Design pressure 14.7 bar.
● Body thickness: 4mm Internal volume: 200L.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Tank Capacity | Noise Level | Oulet | Weight | Dimension (mm) | |||||
| No. | bar | psi | cfm | m3/min | hp | kw | L | Db | Diameter | Kg | L | W | H |
| WZS2.2 | 8 | 116 | 11 | 0.32 | 3 | 2.2 | 110 | 54+/-3 | G1/2 | 180 | 1090 | 450 | 1110 |
| 10 | 145 | 9.5 | 0.28 | ||||||||||
| WZS3.0 | 8 | 116 | 16 | 0.44 | 4 | 3 | 110 | 55+/-3 | G1/2 | 190 | 1090 | 450 | 1110 |
| 10 | 145 | 14 | 0.39 | ||||||||||
| WZS4.0 | 8 | 116 | 20 | 0.58 | 5 | 4 | 110 | 57+/-3 | G1/2 | 200 | 1090 | 450 | 1110 |
| 10 | 145 | 18 | 0.52 | ||||||||||
| WZS5.5 | 8 | 116 | 27 | 0.76 | 7.5 | 5.5 | 110 | 59+/-3 | G1/2 | 215 | 1090 | 450 | 1110 |
| 10 | 145 | 24 | 0.68 | ||||||||||
