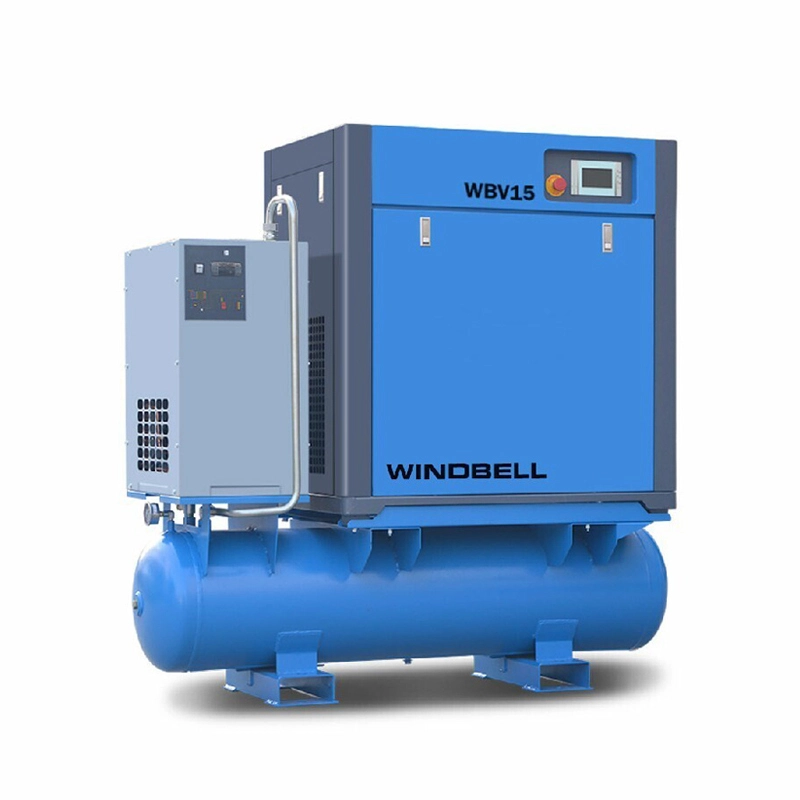

WZS Range 15 kW 3 in 1 Air Compressor Tank Mounted for Automotive Shops
- OEM/ODM Customized Services
Product Descriptions
Engineered for high efficiency and reliability, the WBZ series 3 in 1 air compressor can meet the compressed air demands of a tire shop, vehicle shop, maintenance shop, paint shop or automotive dealer shop. Quiet design WBZ range compressor can be installed almost anywhere, without disturbing your working environment. Tank mounted ,with or with our dryer, the WBZ is the good helper for service or light industrial applications.
Key Functions
Application
It is widely used in industries where air purity and dryness are critical, such as manufacturing, pharmaceuticals, food & beverage, and automotive.
Product Video
The Benefits Of Tank Mounted Air Compressor
Structure Of WZS Air Compressor
Product Details
Refrigerated Air Dryers
High-efficiency plate-fin heat exchanger;
Professional water removal function;
50% reduction in energy consumption;
Dew point 2-10°C;
High Efficiency Airend
● 5 year ,10000 hour warranty when continuouslyserviced at the recommended WNDBELL compressorfluid and filters.
● Equiped with premium quality bearing ( such as SKF). 2 year standard warranty.
Air Filter
● Ensuring Low Pressure Drop
● Efficient separation, low oil content ( less than 3ppm ).
Electrical Motor
● High output airend with advanced profile rotors.
● Equiped with premium quality bearing.
Air Tank
● Design pressure 14.7 bar.
● Body thickness: 4mm Internal volume: 200L.
Oil air separator
● Low pressure drop.
● Efficient separation, low oil content.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Tank Capacity | Noise Level | Oulet | Weight | Dimension (mm) | |||||
| No. | bar | psi | cfm | m3/min | hp | kw | L | Db | Diameter | Kg | L | W | H |
| WZS7.5 | 7 | 100 | 42 | 1.2 | 10 | 7.5 | 200 | 63+/-3 | G3/4 | 450 | 1688 | 690 | 1643 |
| 8 | 116 | 39 | 1.1 | ||||||||||
| 10 | 145 | 35 | 1.0 | ||||||||||
| 12 | 174 | 28 | 0.8 | ||||||||||
| WZS11 | 7 | 100 | 64 | 1.8 | 15 | 11 | 200 | 64+/-3 | G3/4 | 500 | 1688 | 560 | 1428 |
| 8 | 116 | 57 | 1.6 | ||||||||||
| 10 | 145 | 53 | 1.5 | ||||||||||
| 12 | 174 | 46 | 1.3 | ||||||||||
| 13 | 189 | 42 | 1.2 | ||||||||||
| WZS15 | 7 | 100 | 92 | 2.6 | 20 | 15 | 200 | 64+/-3 | G3/4 | 550 | 1688 | 560 | 1428 |
| 8 | 116 | 85 | 2.4 | ||||||||||
| 10 | 145 | 74 | 2.1 | ||||||||||
| 12 | 174 | 64 | 1.8 | ||||||||||
| 16 | 232 | 46 | 1.3 | ||||||||||
| WZS22 | 7 | 100 | 130 | 3.7 | 30 | 22 | 300 | 65+/-3 | G1 | 950 | 2100 | 820 | 1700 |
| 8 | 116 | 124 | 3.5 | ||||||||||
| 10 | 145 | 110 | 3.1 | ||||||||||
| 12 | 174 | 95 | 2.7 | ||||||||||
| 16 | 232 | 85 | 2.4 | ||||||||||
