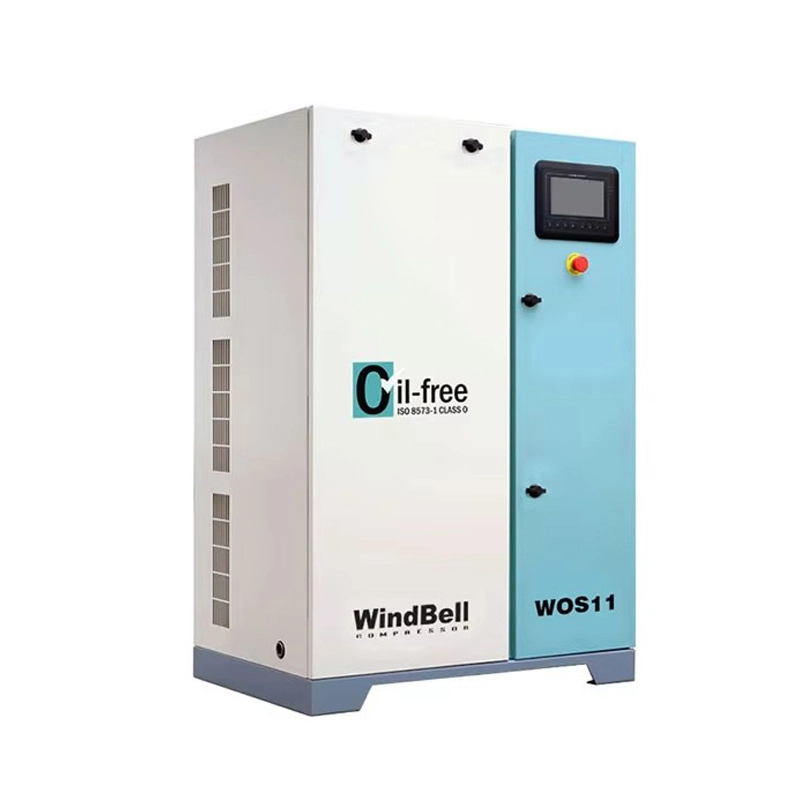

WOS SERIES 7.5-22kW Screw Air Compressor
Product Descriptions
Low Noise Level and Maintenance Cost
CLASS ZERO :100% 0IL-FREE
Working Principle
Air compression is achieved by the interaction of a fixed and orbiting scroll. Air at inlet pressure enters thecompression chamber at the exterior side of the scroll element.Once air is drawn in, the orbiting scrollseals off the inlet port. The orbiting scroll rotates with orbit the air is sucked into the space between theorbiting scroll and the stationary scrol, the volume of crescent compression chamber gradualy decreasesand then the air is discharged from the exhaust port at the center of the stationary scroll after beingcompressed.
Product feature
Cooling fan
Suction chamber
Suction opening
Delivery opening
Fixed scroll
Orbiting scroll
Fail-safe temperature sensor for unit protection
Compression chamber
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Tank Capacity | Noise Level | Weight | Dimension (mm) | ||
| No. | bar | cfm | hp | L | Db | Kg | L | W | H |
| WOS2.2 | 8 | 8.5 | 3 | 40 | 53+/-3 | 115 | 540 | 500 | 1095 |
| 10 | 7.05 | ||||||||
| WOS3.7 | 8 | 14.5 | 5 | 40 | 55+/-3 | 125 | 540 | 500 | 1095 |
| 10 | 12 | ||||||||
| WOS7.5 | 8 | 29 | 10 | / | 60+/-3 | 350 | 1200 | 700 | 1100 |
| 10 | 24 | ||||||||
| WOS11 | 8 | 42 | 15 | / | 61+/-3 | 500 | 1250 | 740 | 1280 |
| 10 | 36 | ||||||||
| WOS15 | 8 | 58 | 20 | / | 62+/-3 | 550 | 1250 | 740 | 1650 |
| 10 | 48 | ||||||||
| WOS18 | 8 | 72 | 25 | / | 62+/-3 | 650 | 1250 | 740 | 2000 |
| 10 | 60 | ||||||||
| WOS22 | 8 | 86 | 30 | / | 63+/-3 | 900 | 1600 | 1250 | 1650 |
| 10 | 72 | ||||||||
| WOS30 | 8 | 115 | 40 | / | 64+/-3 | 1050 | 1600 | 1250 | 2000 |
| 10 | 96 | ||||||||
| WOS37 | 8 | 145 | 50 | / | 65+/-3 | 1250 | 1600 | 1250 | 2000 |
| 10 | 120 | ||||||||
