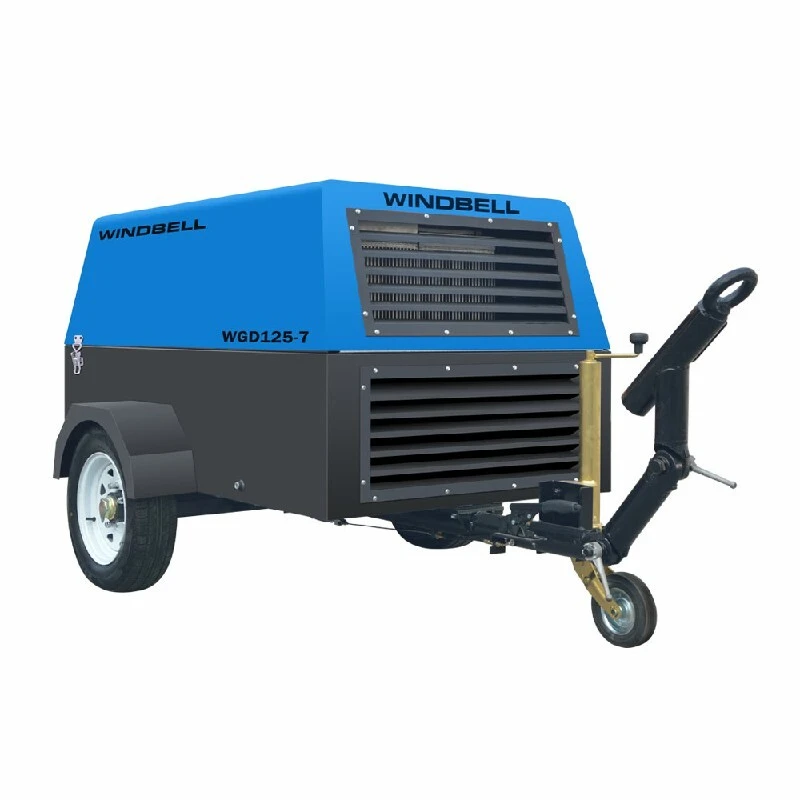

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 1

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 2

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 3

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 4

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 5

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 6

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty

OEM/ODM Customized Services

Model:

WGD125

Capacity:

105-125 cfm

Working pressure:

7-10 bar

Motor power:

23kW

Inquiry

Write a Review

Product Descriptions

The WINDBELL WGD125 diesel screw air has an impressive 30HP,3 cylinder-direct injected diesel engine which drives a huge air end delivering 125cfm of free air delivery. A great feature of this engine is that all coolant is ran through a hydraulic system achieving a greater flow rate.

Engine driven air compressorswill rev up when the air demand is required and whenidle back. Diesel engine will idle when pressure reached.

Both portable and skid version are available.

PRODUCT ADVANTAGES

Engine Features:

>2 years, 2000 hours standard warranty.

>Quiet, direct fuel injection engine.

>Low fuel consumption

Air end warranty:

>5 years, 10000 hours warranty when continuously serviced at the recommended windbell compressor oil and filters.

>2 Year standard warranty.

Easier service and maintenance:

>Hand-operated compressor oil and fuel drains require no tools.

>Big open-angle of cover is easy for maintenance.

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 9

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 10

Structure Of WGD 125 Air Compressor

Screw air end and electrica motor is driven directly by coupling which is no slippage loses and energy loss.

PRODUCT DETAILS

WGD-125 is a new model from WINDBELL company, an efficiency range of oil injected, rotary screw compressors. Driven by a powerful 3-cylinder Quanchai diesel engine. It provides reliable compressed air for different applications.

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 13

Reliable Diesel Engine

Powered by a 30hp Quanchai engine which work with a efficiency air end, to ensure 125 cfm productivity at 7 bar pressure.

WGD Series 125 CFM Diesel Air Compressor 30HP with LCD Display 5 Year Warranty 14

High Efficiency Airend

● High output airend with advanced profile rotors.● Equiped with premium quality bearing ( such as SKF).

Smart Controller

The smart controller can realize functions of compressor start/stop. data measurement, maintenance, alarm protection, and "three remotes".

Oil Air Separator Tank

● Low outlet temperature, ensuring long oil lifetime. ● Large surface to ensure low operating temperature.

Cooling System

Enlarged air cooling system makes sure engine and compressor to run in good condition

Heavy duty Air Intake Filter

● Protects the compressor components by removing thedirty particles. ● Guarantees longer lifetime of compressor components.

Filter System

The filtration system of the WGD diesel air compressor includes an air filter, oil filter, engine fuel filter, and oil-gas separator.

Air Filter‌: Removes impurities and particles from the air entering the compressor.

‌Oil Filter‌: Eliminates contaminants and reduce maintenance frequency and costs in the lubrication system.

‌Fuel Filter‌: Blocks particles, water, and impurities in fuel to protect precision components of the fuel system from wear and damage.

Heavy-duty-Air-Intake-Filter

Oil-Filter

Diesel&Engine-Fuel-Filter

Diesel&Engine-Fuel-Filter‌

Technical Parameters

Model	Working pressure		Capacity FAD		Power		Voltage	Engine	Oulet	Weight	Dimension (mm)
No.	bar	psi	cfm	m3/min	hp	kw	V/Hz	Make	Diameter	Kg	L	W	H
WGD125	7	100	125	3.50	30	23	380/50 or Customized	QUANCHAI	2x3/4’’	650	2850	1530	1260
	8	116	105	2.95
	10	145	85	2.4

Product Video

Compressor Parts And Accessories

Compressed Air Aftercooler

Compressor Parts And Accessories

Company WINDBELL offers a wide range of compressor parts and accessories to ensure optimal performance and longevity of your equipment. From air filters and oil separators to valves and gaskets, our high-quality products are designed to meet the needs of various compressor brands and models.

Compressed Air treatments Treatment

WINDBELL offers high-quality Compressed Air Equipment designed to meet the needs of industrial and commercial users. Our products are designed with efficiency and reliability in mind, providing a dependable source of compressed air for use in a variety of applications.

Compressed Air Dryer

Compressed Air Filters

Compressed Air Receivers

Skid version

FAQ

What is the WBS AND WBV difference?

WBS is fixed speed and WBV is variable speed. 7.5kw/10hp can be made in both fixed and variable speed.

Benefites for variable speed compressor?

The motor speed can be regulated by inverter according to air demand, it can save electricity , save money. Fixed speed motor speed can not be regulated.
