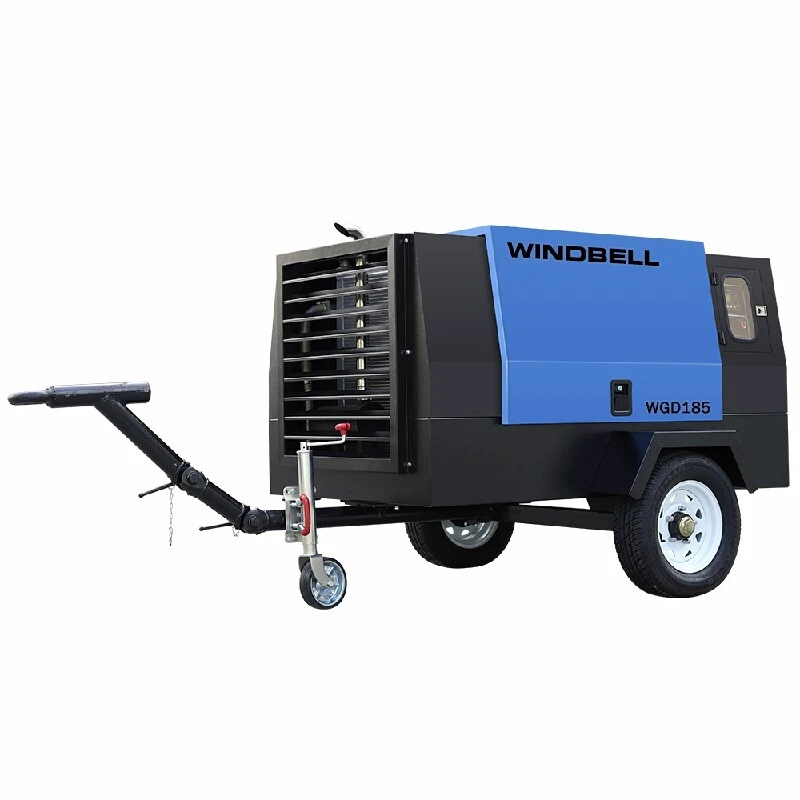

WGD 185 CFM Diesel Screw Compressor 37kW 7-10 Bar with LCD Display

Product Descriptions

The WINDBELL WGD185 diesel screw air has an impressive 50HP, 4 cylinder-direct injected diesel engine which drives a huge air end delivering 185cfm of free air delivery. A great feature of this engine is that all coolant is ran through a hydraulic system achieving a greater flow rate.

This unit is controlled through an intuitive intelligent LCD digital display that is carefully protected behind a cabinet door. This digital display allows you to see all the functionalities of what the diesel screw compressor is doing with live feedback. From the RPM of the engine, pressure range delivering, fuel consumption, service hours,run time and much more. Just like all our other engine driven air compressors will rev up when the air demand is required and when idle back.

When pressure has been reached. We have also implemented the air compressor to have an battery insolation switch which is located inside the lockable doors. The WGD185 has been designed with twin air outlets making it easy to either to regulate one outlet for air tools and when have direct pressure for blow downs or tyre inflation.

Product Video

Features & Benefits

● Water cooled engine

● Coupling driven

● Huge air intake filters that are easily accessible for

● maintenance or replacing

● Fuel filter with sight glass for easy identification

● LCD control panel

● Twin air outlet

● Ease of servicing with easy access parts

● Lockable panels with pneumatic support

● Battery isolator switch

● Isolating switch at control panel

● Diesel engine will idle when pressure reached

● Sound proofed cabinet

● Low diesel consumption

● Automated fault finding and recording

● Storage battery included

Structure Of WGD 185 Air Compressor

PRODUCT DETAILS

WGD185 Portable Air Compressor: WGD185 is a popular model from WINDBELL company, an efficiency range of oil injected, rotary screw compressors. Driven by a powerful 4-cylinder Xichai diesel engine, it provides reliable compressed air for different applications.

Reliable Xichai Engine: Powered by a 50hp Xichai engine which work with a efficiency air end, to ensure 185 cfm productivity at 7 bar pressure. Xichai engine is economical .reliable, and durable. Enlarged cooling system can ensure compressor to work under harsh environment.

Smart Controller: The smart controller can realize functions of compressor start/stop,data measurement, maintenance, alarm protection, and "three remotes". It has speed regulator function, and CANBUS(SAE J1939) port which can control various ECU or non-ECU diesel driven compressor.

Trailer Mounted:

● Fixed tow bar

● Jockey wheel

● Parking brake (optional)

Filter System

Powder coated canopy: Compact ,lightweight design.

Rotary screw compressor: Advanced rotary screw technology.

Air intake filters: The single .high performance air intake filter prevents dust and dirt particles from entering the engine and compressor.

Air cooling system: Enlarged air cooling system makes sure engine and compressor to run in good condition.

Compressor Parts And Accessories

Powder coated canopy: Compact ,lightweight design.

Rotary screw compressor: Advanced rotary screw technology.

Air intake filters: The single .high performance air intake filter prevents dust and dirt particles from entering the engine and compressor.

Air cooling system: Enlarged air cooling system makes sure engine and compressor to run in good condition.

Compressed Air Treatments Treatment

Powder coated canopy: Compact ,lightweight design.

Rotary screw compressor: Advanced rotary screw technology.

Air intake filters: The single .high performance air intake filter prevents dust and dirt particles from entering the engine and compressor.

Air cooling system: Enlarged air cooling system makes sure engine and compressor to run in good condition.
