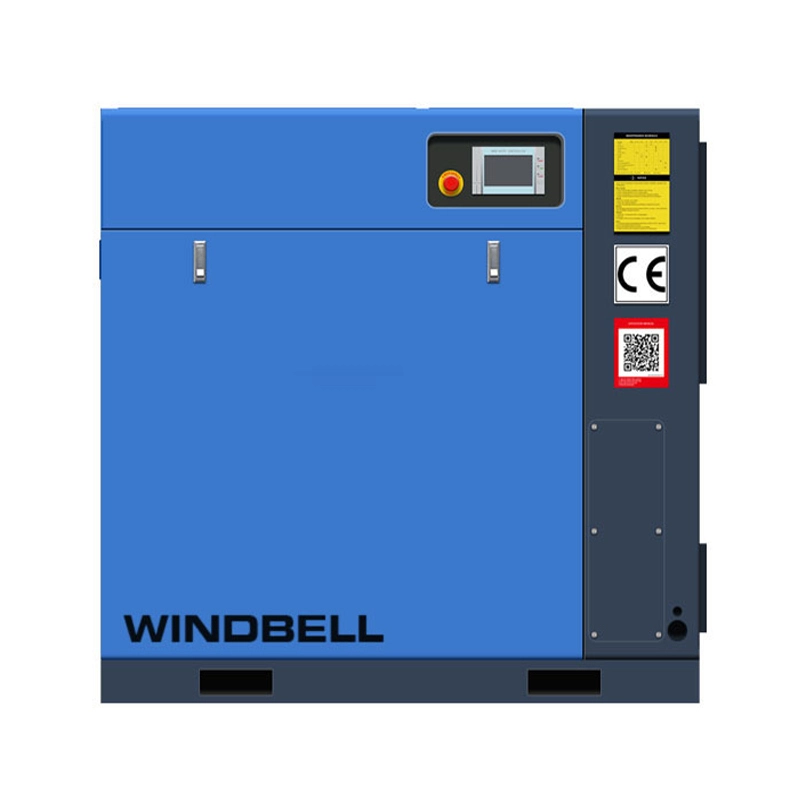

WBV IIH Range 22-132 kW 2-Stage Compression Screw Air Compressor
5.0
Model:
WBV-22H
Capacity:
3.0-4.0 m3/min
Working pressure:
8-10 bar
Motor power:
22kW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Descriptions
The WBVIIH Range is equiped with horizontal 2-stage compression air end and IP23 electrical motor. Comparing to standard 2-stage compression, this range is more economical and more output.
Only variable speed is available for this model.
WBV-22H (2)
Product feature
2-Stage compression air end
● The best screws macting ratio and linear speed.Control of cooling oil capacity to make sure compressedair temperature is always higher than dew point.Optimized liquid tunel design.
PM variable speed motor
● IP55 protection oil cooling electrical motor makecompressor can work in harsh environment .Variable speed can be adjusted by pressure changein compression system.
Exclusively designed blowing
● Exclusively designed air blowing increases cooling efficiency about 8% and also increased heat radiation.
Separate inverter cabinet
● The inverter (variable speed drive) is housed in itsown cabinet to shield it from heat from the compressor.
HD touching display
● Monitoring features include warning indicationsmaintenance sheduling ,service time, auto-startremote control.
Enlarger oil air separator
● Enlarger oil air separator ensures low pressure drop, efficient separation and low oil content.
It is also well grounded for static electricity.
Why To Choose 2-stage Compression Compressor
For 2-stage compression compressor , the high temperature air produced by first stage compression wilbe oil cooledand adiabatic compressed in second time. in the whole process, it is near to isothermal compression which can saveenergy consumption.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Voltage | Starter | Oulet | Weight | Dimension (mm) | |||||
| No. | bar | psi | cfm | m3/min | hp | kw | V/Hz | Mode | Diameter | Kg | L | W | H |
| WBS22II | 7 | 100 | 155 | 4.5 | 30 | 22 | 380/50 or Customized |
Inverter | G1 | 550 | 1370 | 780 | 1250 |
| 8 | 116 | 140 | 4.0 | ||||||||||
| 10 | 145 | 105 | 3.0 | ||||||||||
| 12 | 174 | 80 | 2.2 | ||||||||||
| WBS37 | 7 | 100 | 275 | 7.8 | 50 | 37 | 380/50 or Customized |
Inverter | G2 | 900 | 1800 | 1150 | 1500 |
| 8 | 116 | 255 | 7.3 | ||||||||||
| 10 | 145 | 225 | 6.3 | ||||||||||
| 12 | 174 | 195 | 5.5 | ||||||||||
| WBS45 | 7 | 100 | 360 | 10.2 | 60 | 45 | 380/50 or Customized |
Inverter | G2 | 1200 | 1950 | 1200 | 1600 |
| 8 | 116 | 355 | 10.1 | ||||||||||
| 10 | 145 | 275 | 7.8 | ||||||||||
| 12 | 174 | 230 | 6.5 | ||||||||||
| WBS55 | 7 | 100 | 475 | 13.4 | 75 | 55 | 380/50 or Customized |
Inverter | G2 | 1300 | 1950 | 1200 | 1600 |
| 8 | 116 | 460 | 13.0 | ||||||||||
| 10 | 145 | 360 | 10.2 | ||||||||||
| 12 | 174 | 315 | 9.0 | ||||||||||
| WBS75 | 7 | 100 | 550 | 15.6 | 100 | 75 | 380/50 or Customized |
Inverter | G2 | 1500 | 1950 | 1200 | 1600 |
| 8 | 116 | 530 | 15.1 | ||||||||||
| 10 | 145 | 450 | 12.8 | ||||||||||
| 12 | 174 | 390 | 11.0 | ||||||||||
| WBS90 | 7 | 100 | 705 | 20.0 | 120 | 90 | 380/50 or Customized |
Inverter | DN80 | 2800 | 2650 | 1650 | 1670 |
| 8 | 116 | 690 | 19.5 | ||||||||||
| 10 | 145 | 565 | 16.0 | ||||||||||
| 12 | 174 | 495 | 14.0 | ||||||||||
| WBS110 | 7 | 100 | 850 | 24.0 | 150 | 110 | 380/50 or Customized |
Inverter | DN80 | 3000 | 2650 | 1650 | 1670 |
| 8 | 116 | 830 | 23.5 | ||||||||||
| 10 | 145 | 690 | 19.5 | ||||||||||
| 12 | 174 | 565 | 16.0 | ||||||||||
| WBS132 | 7 | 100 | 980 | 27.8 | 180 | 132 | 380/50 or Customized |
Inverter | DN80 | 3100 | 2650 | 1650 | 1670 |
| 8 | 116 | 955 | 27.0 | ||||||||||
| 10 | 145 | 830 | 23.5 | ||||||||||
| 12 | 174 | 690 | 19.5 | ||||||||||
