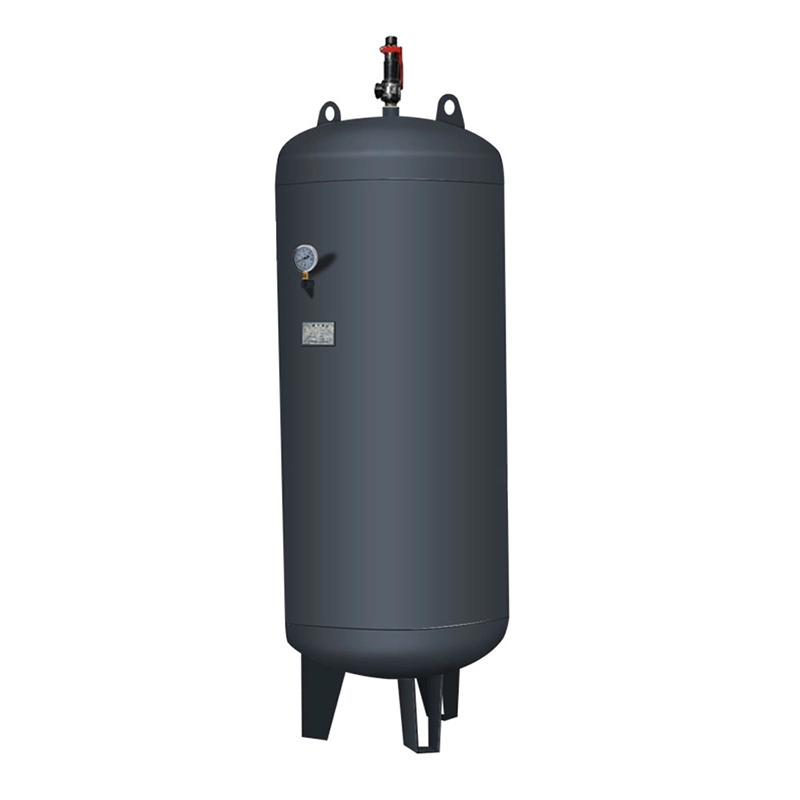

WBT Compressed Air Receiver Tank 300 5000L 8 30 Bar Energy Saving
5.0
Model:
WBT3.0-10
Capacity:
300-5000L
Working pressure:
8-30 bar
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Descriptions
A proper compressed air installation has acorrectly sized air receiver tank directly afterthe compressor.
WBT Range air receiver makes air available at a constant pressure by storing compressed air for peak demand. By avoiding undue load/unload cycles, it saves energy costs and extends the life of the compressor.
图片1 拷贝
图片4 拷贝 (3)
The Advantages Of Air Receiver
● lt provides appropriate cycle times for the unloading and pressure lowering of the compressor.
● The fewer times the compressor loads, the greater the efficiency and the lower the power costsresulting in less wear and tear on the air compressor's components.
● It removes 60% to 70 % of the condensate from the compressed air.
● Air receivers have a unique anti-block drain connection.
Technical Parameters
| Model | Capacity | Working Pressure | Total Height | Inside diameter | Net Weight |
| No. | L | bar | mm | mm | kg |
| WBT0.3 | 300 | 8 | 1560 | 550 | 92 |
| 10 | 1562 | 112 | |||
| 13 | 1564 | 156 | |||
| 16 | 1564 | 156 | |||
| 25 | 1568 | 195 | |||
| 30 | 1568 | 195 | |||
| 40 | 1572 | 262 | |||
| WBT0.5 | 500 | 8 | 2063 | 600 | 155 |
| 10 | 2063 | 155 | |||
| 13 | 2067 | 157 | |||
| 16 | 2067 | 157 | |||
| WBT0.6 | 600 | 8 | 1844 | 700 | 170 |
| 10 | 1846 | 196 | |||
| 13 | 1846 | 220 | |||
| 16 | 1846 | 240 | |||
| 25 | 1850 | 280 | |||
| 30 | 1855 | 372 | |||
| 40 | 1859 | 410 | |||
| WBT1.0 | 1000 | 8 | 2240 | 800 | 226 |
| 10 | 2240 | 262 | |||
| 13 | 2340 | 271 | |||
| 16 | 2343 | 325 | |||
| 25 | 2351 | 490 | |||
| 30 | 2355 | 576 | |||
| 40 | 2355 | 582 | |||
| WBT1.5 | 1500 | 8 | 2357 | 1000 | 338 |
| 10 | 2357 | 338 | |||
| 13 | 2359 | 388 | |||
| 16 | 2363 | 498 | |||
| 25 | 2368 | 630 | |||
| 30 | 2372 | 735 | |||
| 40 | 2380 | 1050 | |||
| WBT2.0 | 2000 | 8 | 2692 | 1100 | 460 |
| 10 | 2692 | 460 | |||
| 13 | 2694 | 505 | |||
| 16 | 2698 | 660 | |||
| 25 | 2702 | 815 | |||
| 30 | 2706 | 998 | |||
| 40 | 2719 | 1470 | |||
| WBT2.5 | 2500 | 8 | 2776 | 1200 | 846 |
| 10 | 2778 | 847 | |||
| 13 | 2782 | 850 | |||
| 30 | 2795 | 855 | |||
| WBT3.0 | 3000 | 8 | 2807 | 1300 | 521 |
| 10 | 2809 | 621 | |||
| 13 | 2813 | 787 | |||
| 16 | 2817 | 1031 | |||
| 35 | 2834 | 1755 | |||
| 40 | 2838 | 2243 |
