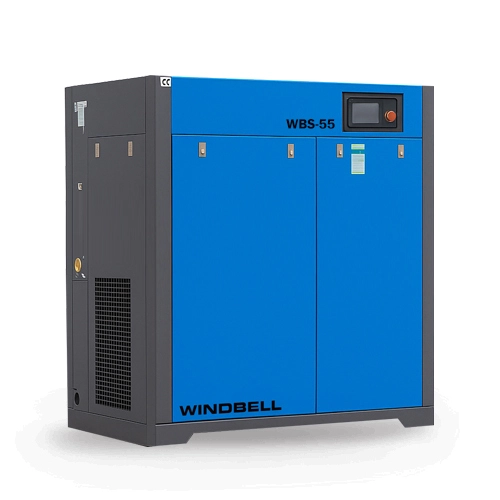

WBS SERIES 75hp rotary screw air compressor
- OEM/ODM Customized Services
Product Descriptions
The 55kw, 75hp screw air compressor is equipped with one high efficiency air end and powered by one IP55 energy saving electrical motor. The cooling system of the screw air compressor is driven by one turbo (centrifugal ) blower which is very high efficiency and silent.
Touchable screen makes operation be easier.
Compact size needs less rooms, it is good choice for factory site and workshops.
3 In 1 Compressor With Dryer And Receiver
Product Video
Structure Of WBS-55 Air Compressor
Screw air end and electrica motor is driven directly by coupling which is no slippage loses and energy loss.
Product Descriptions
Electrical motor is with IP55 protection class , F class insulation , can continuously work in harsh environment.
High efficiency air end is designed with high output with advanced profile totors, bearings for some of air ends are imported brand, such as SKF.
Windbell original oil filter is with benefites of high filtering efficiency ,long lifetime and low maintenance cost .
Heavy dusty air intake filter protects the compressor elements by removing the dirty particles and guarantees longer lifetime of compressor elements.
One-Stop Shopping
● A Complete Set Of Services
● Eliminate all intermediate links
● Perfect after-sales service point
● Easy to maintain
● Powerful performance
● Energy-efficient
Technical Parameters
|
Model No. |
Working pressure bar |
Capacity(FAD) m3/min |
Power kw |
Driving model Cooling method |
Noise level dB |
Outlet diameter |
Weight kg |
Dimension mm |
|
WBS7.5 |
7 |
1.2 |
7.5 |
Direct Air cooling(Standard) |
63 |
G3/4" |
400 |
890*560*840 |
|
8 |
1.1 |
|||||||
|
10 |
1.0 |
|||||||
|
12 |
0.8 |
|||||||
|
WBS11 |
7 |
1.8 |
11 |
Direct Air cooling(Standard) |
64 |
G3/4" |
460 |
1050*690*1080 |
|
8 |
1.6 |
|||||||
|
10 |
1.5 |
|||||||
|
12 |
1.3 |
|||||||
|
WBS15 |
7 |
2.6 |
15 |
Direct Air cooling(Standard) |
65 |
G3/4" |
500 |
1050*690*1080 |
|
8 |
2.4 |
|||||||
|
10 |
2.1 |
|||||||
|
12 |
1.8 |
|||||||
|
WBS22 |
7 |
3.7 |
22 |
Direct driven Air cooling |
65 |
G1" |
550 |
1350*780*1250 |
|
8 |
3.5 |
|||||||
|
10 |
3.1 |
|||||||
|
12 |
2.7 |
|||||||
|
WBS30 |
7 |
5.3 |
30 |
Direct driven Air cooling |
67 |
G1-1/2" |
940 |
1420*900*1425 |
|
8 |
5.1 |
|||||||
|
10 |
4.6 |
|||||||
|
12 |
3.9 |
|||||||
|
WBS37 |
7 |
6.5 |
37 |
Direct driven Air cooling |
67 |
G1-1/2" |
1000 |
1420*900*1425 |
|
8 |
6.2 |
|||||||
|
10 |
5.6 |
|||||||
|
12 |
4.9 |
|||||||
|
WBS45 |
7 |
8.1 |
45 |
Direct driven Air cooling |
70 |
G1-1/2" |
1050 |
1750*1100*1700 |
|
8 |
7.5 |
|||||||
|
10 |
7.0 |
|||||||
|
12 |
6.0 |
|||||||
|
WBS55 |
7 |
10.5 |
55 |
Direct driven Air cooling |
73 |
G2" |
1500 |
1750*1100*1700 |
|
8 |
10 |
|||||||
|
9 |
9.0 |
|||||||
|
12 |
8.0 |
|||||||
|
WBS75 |
7 |
14.3 |
75 |
Direct driven Air cooling |
75 |
G2" |
1700 |
1750*1100*1700 |
|
8 |
13.0 |
|||||||
|
10 |
11.8 |
|||||||
|
12 |
10.5 |
Air Compressor Application
Screw air compressors are widely used across industries. Key application areas include: Industrial Manufacturing, Oil & Gas & Petrochemical, Automotive & Aerospace, Food & Beverage Industry, Pharmaceutical & Healthcare, Construction & Mining, Textile & Printing Industry etc.
Manufacturer Advantage
We are a company combined with R&D, production and sales wholly. 20 Years OEM/ODM experiences.
R&D team: 12 people/ QC team: 15 people;
Each screw air compressor is subjected to a series of tests before leaving Windbell factory.
24-month full machine warranty, 36-month air end warranty.
