Windbell Compressor - a professional air compressor manufacturer & supplier since 2011

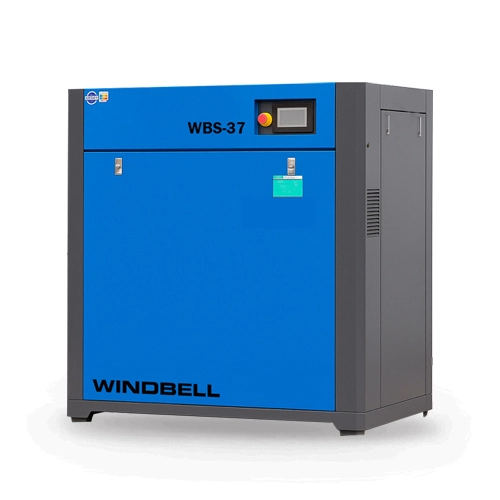

WBS SERIES 50hp rotary screw air compressor 1

WBS SERIES 50hp rotary screw air compressor 2

WBS SERIES 50hp rotary screw air compressor

OEM/ODM Customized Services

Model:

WBS(V)37

Capacity:

4.9-6.5 m3/min

Working pressure:

7-12 bar

Motor power:

37KW

Inquiry

Write a Review

Product Descriptions

The 37kw, 50hp screw air compressor is equipped with one high efficiency air end and powered by one IP55 energy saving electrical motor. The cooling system of the screw air compressor is driven by one turbo (centrifugal ) blower which is very high efficiency and silent.

Touchable screen makes operation be easier.

Compact size needs less rooms, it is good choice for factory site and workshops.

WindBell COMPRESSOR MANUAL

wbs-55-01

wbs-55-02


Structure Of WBS-55 Air Compressor

Screw air end and electrica motor is driven directly by coupling which is no slippage loses and energy loss.

Product Details

Electrical Motor

● IP54,insulation Class F, lE2

● Can continuously work in harsh envionments.

High Efficiency Airend

● High output airend with advanced profile rotors.

● Equiped with premium quality bearing ( such as SKF).

Oil Filter

● High filtering efficiency.

● Oil circuit protection.

Oil Air Separator Tank

● Low outlet temperature, ensuring long oil lifetime.

● Large surface to ensure low operating temperature.

Heavy duty Air Intake Filter

● Protects the compressor components by removing thedirty particles.

● Guarantees longer lifetime of compressor components.

Cooling System

● Ensuring Low Pressure Drop

● Efficient separation, low oil content ( less than 3ppm ).

Air Compressor Application

Electric screw air compressors, with their high efficiency and stable performance, are used in almost all pneumatic application scenarios. Major application areas include: machinery manufacturing, CNC machine tools, electronics and semiconductors, food and pharmaceuticals, construction, automotive painting, chemicals, textiles, and printing industries.

WBS SERIES 50hp rotary screw air compressor 14

WBS SERIES 50hp rotary screw air compressor 15

WBS SERIES 50hp rotary screw air compressor 16

WBS SERIES 50hp rotary screw air compressor 17

WBS SERIES 50hp rotary screw air compressor 18

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

WBS SERIES 50hp rotary screw air compressor 19

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

INTELLIGENT MONITORING AND CONTROLS

HD coloful touchable display indicates compressor running status and monitoring features which include warning indications , maintenance scheduling.

It is available with language of Chinese , English , French,Russia and Spain.

● Supporting real-time and cumulative power consumption measurement.

● It can control any frequency converter that supports Modbus RTU protocol, so more flexible choices.

● Remote control.

Technical Parameters

Model	Working pressure		Capacity FAD		Motor Power		Voltage	Starter	Oulet	Weight	Dimension (mm)
No.	bar	psi	cfm	m3/min	hp	kw	V/Hz	Mode'	Diameter	Kg	L	W	H
WBS45	7	100	286	8.1	60	45	380/50 or Customized	Star-Delta Soft Starter Inverter	G1-1/2	1500	1750	1100	1700
	8	116	265	7.5
	10	145	247	7.0
	12	174	212	6.0
WBS55	7	100	371	10.5	75	55	380/50 or Customized	Star-Delta Soft Starter Inverter	G2	1700	1750	1100	1700
	8	116	353	10.0
	10	145	318	9.0
	12	174	283	8.0
WBS75	7	100	505	14.3	100	75	380/50 or Customized	Star-Delta Soft Starter Inverter	DN50	2050	1750	1100	1700
	8	116	459	13.0
	10	145	417	11.8
	12	174	371	10.5

图片1 拷贝

3 In 1 Compressor With Dryer And Receiver

All-in-one design (air compressor + storage tank + cold dryer + filter), sturdy and high.

10HP All in one variable speed screw air compressor characterised by compact structure and flexible movement, the integrated design of the air compressor system, with tight connection between components and convenient installation.

FAQ

What is the WBS AND WBV difference?

WBS is fixed speed and WBV is virable speed. 7.5kw/10hp can be made in both fixed and variable speed.

Benefites for variable speed compressor?

The motor speed can be regulated by inverter according to air demand, it can save electricity, save money. Fixed speed motor speed can not be regulated.
