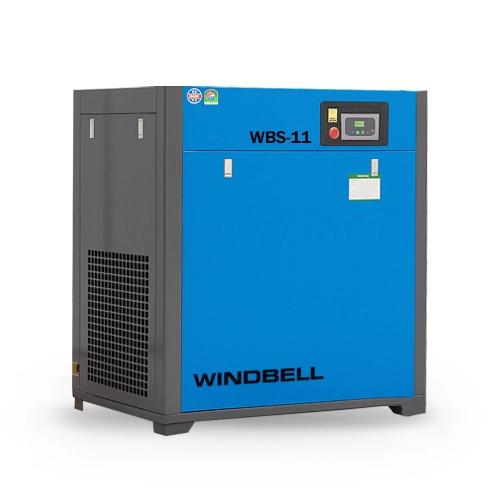

WBS SERIES 11kW Screw Air Compressor 1.3 1.8 m3 min 7 12 Bar IP55

Model:

WBS(V)11

Capacity:

1.3-1.8 m3/min

Working pressure:

7-12 bar

Motor power:

11kW

Inquiry

Write a Review

Product Descriptions

Screw air end and electrica motor is driven directly by coupling which is no slippage loses and energy loss.

The 11kw,15hp screw air compressor is equipped with one high efficiency air end and powered by one IP55 energy saving electrical motor. The cooling system of the screw air compressor is driven by one turbo (centrifugal ) blower which is very high efficiency and silent.

Touchable screen makes operation be easier.

Compact size needs less rooms, it is good choice for factory site and workshops.

wbs-11-01

wbs-11-02

图片1 拷贝

One-Stop Shopping

● A Complete Set Of Services

● Eliminate all intermediate links

● Perfect after-sales service point

● Easy to maintain

● Powerful performance

● Energy-efficient

Product Video

Structure Of WBS-11 Air Compressor

Screw air end and electrica motor is driven directly by coupling which is no slippage loses and energy loss.

Product Details

Electrical Motor

● IP54,insulation Class F, lE2

● Can continuously work in harsh envionments.

High Efficiency Airend

● High output airend with advanced profile rotors.

● Equiped with premium quality bearing ( such as SKF).

Oil Filter

● High filtering efficiency.

● Oil circuit protection.

Oil Air Separator Tank

● Low outlet temperature, ensuring long oil lifetime.

● Large surface to ensure low operating temperature.

Heavy duty Air Intake Filter

● Protects the compressor components by removing thedirty particles.

● Guarantees longer lifetime of compressor components.

Cooling System

● Ensuring Low Pressure Drop

● Efficient separation, low oil content ( less than 3ppm ).

2209

2209b

INTELLIGENT MONITORING AND CONTROLS

HD coloful touchable display indicates compressor running status and monitoring features which include warning indications , maintenance scheduling.

It is available with language of Chinese , English , French,Russia and Spain.

● Supporting real-time and cumulative power consumption measurement.

● It can control any frequency converter that supports Modbus RTU protocol, so more flexible choices.

● Remote control.

Wbs Vsd Drowing Down You Renergy Cost

WBS VSD range compressors is equiped with higher efficiency airend, pamanent magnet frequency motor and inverter it can saveon average 35% energy comparing to WBS range. Moreover, the generation of compressed air canaccount for more than 40% of plant's totale lectricity bill. To cut your engergy costs, VSD compressor is the best choice.

● Touchable screen makes operation be easier.

● Compact size needs less rooms , it is good choice for factory site and workshops.

● The cooling system of the screw air compressor is driven by one turbo (centrifugal ) blower which is very high efficiency and silent.

● The 7.5kw ,10hp screw air compressor is equipped with one high efficiency air end and powered by one IP55 energy saving electrical motor.

From the graphics above,it is easy to see the energy consumption fluctuates for WBS VSD range is close to the air demand variety, it saves moreen ergy than WBS range.

WINDBELL WBS VSD range compressors closely follow the air demand by autom atically adjusting the motor speed. the results in on average of 35% energy saving.

Technical Parameters

Model

Working pressure

Capacity FAD

Motor Power

Voltage

Starter

Oulet

Weight

Dimension (mm)

No.

bar

psi

cfm

m3/min

V/Hz

Mode'

Diameter

WBS11

100

1.8

380/50
or Customized

Star-Delta
Soft Starter
Inverter

G3/4

320

1050

690

1080

FAQ

What is the WBS AND WBV difference?

WBS is fixed speed and WBV is virable speed. 7.5kw/10hp can be made in both fixed and variable speed.

Benefites for variable speed compressor?

The motor speed can be regulated by inverter according to air demand, it can save electricity, save money. Fixed speed motor speed can not be regulated.
