WBS SERIES 10hp rotary screw air compressor
- OEM/ODM Customized Services

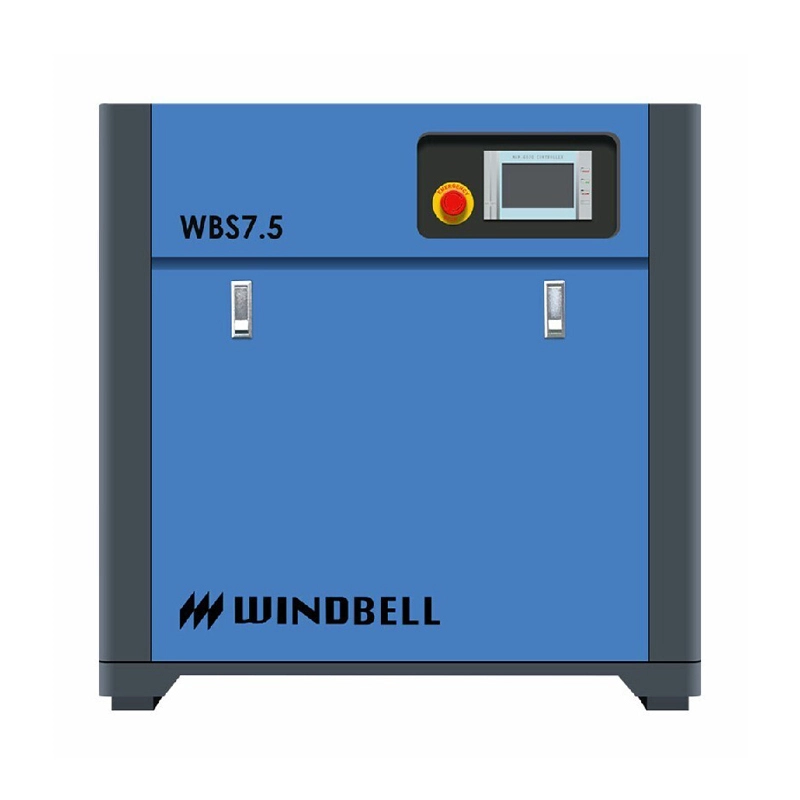

10Hp Rotary Screw Air Compressor
The 10hp rotary screw air compressorscrew air compressor is equipped with one high efficiency air end and powered by one IP55 energy saving electrical motor. The cooling system of the screw air compressor is driven by one turbo (centrifugal ) blower which is very high efficiency and silent.
Touchable screen makes operation be easier.
Compact size needs less rooms , it is good choice for factory site and workshops.
3 In 1 Compressor With dryer and Receiver
Product Video
Structure Of WBS 7.5 Air Compressor
Screw air end and electrica motor is driven directly by coupling which is no slippage loses and energy loss.
Product Details
Electrical motor is with IP55 protection class , F class insulation , can continuously work in harsh environment.
High efficiency air end is designed with high output with advanced profile totors, bearings for some of air ends are imported brand, such as SKF.
Windbell original oil filter is with benefites of high filtering efficiency ,long lifetime and low maintenance cost .
Oil air separator system ensures low pressure drop, efficient separation, low oil contect.
And well grounded for static electricity.
Heavy dusty air intake filter protects the compressor elements by removing the dirty particles and guarantees longer lifetime of compressor elements.
Oil cooler and compressed air cooler is separated design to ensure long oil lifetime and low outlet temperature.
Centrifugal (turbo) blower is with benefites of high flows , low noise level and compact design.
One-Stop Shopping
INTELLIGENT MONITORING AND CONTROLS
HD coloful touchable display indicates compressor running status and monitoring features which include warning indications , maintenance scheduling.
It is available with language of Chinese , English , French,Russia and Spain.
● Supporting real-time and cumulative power consumption measurement.
● It can control any frequency converter that supports Modbus RTU protocol, so more flexible choices.
● Remote control.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Voltage | Starter | Oulet | Weight | Dimension (mm) | |||||
| No. | bar | psi | cfm | m3/min | hp | kw | V/Hz | Mode' | Diameter | Kg | L | W | H |
| WBS7.5 | 7 | 100 | 42 | 1.2 | 10 | 7.5 | 380/50 or Customized | Star-Delta Soft Starter Inverter | G3/4 | 200 | 890 | 560 | 840 |
| 8 | 116 | 39 | 1.1 | ||||||||||
| 10 | 145 | 35 | 1.0 | ||||||||||
| 12 | 174 | 28 | 0.8 | ||||||||||
Air Compressor Application
Screw air compressors are widely used across industries. Key application areas include: Industrial Manufacturing, Oil & Gas & Petrochemical, Automotive & Aerospace, Food & Beverage Industry, Pharmaceutical & Healthcare, Construction & Mining, Textile & Printing Industry etc.
Manufacturer Advantage
We are a company combined with R&D, production and sales wholly. 20 Years OEM/ODM experiences.
R&D team: 12 people/ QC team: 15 people;
Each screw air compressor is subjected to a series of tests before leaving Windbell factory.
24-month full machine warranty, 36-month air end warranty.
