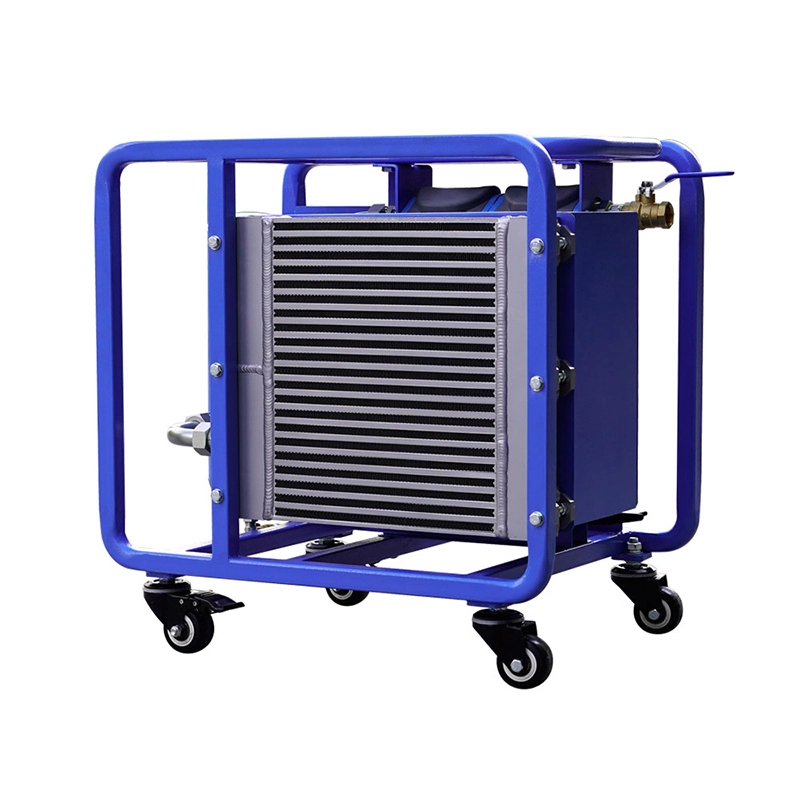

WAC SERIES AFTER COOLER 5.2 m3 min 6 12 Bar DC12V for Diesel Compressors
Product Descriptions
Windbell diesel compressors with capacity lower than 500 cfm can be operated with an external compressed air aftercooler, optionally.
Unitswe are delivered ready prepared with DC12V or DC24V electrical connection for voltage supply aftercooler fan. Compressors are already equipped with socket or reserved connection.
Units also equipped with one 3.6L air water separator tank, the purpose is to keep compressed air system pressure balance and separate condensate in compressed air.
All you need to do is connect aftercooler to the suitable compressor.
Technical Parameters
|
Model |
Working |
Max. |
Voltage |
Fan Power |
Inlet |
Outlet |
Weight |
Dimension |
|
WAC185 |
6-12 |
185 |
DC12 |
80 |
3/4" |
3/4" |
45 |
610×450×620 |
|
WAC420 |
6-12 |
420 |
DC24 |
95 |
1-1/4" |
1-1/4" |
60 |
710×500×700 |
