Tank Mounted Air compressor With Dryer
Rotary screw air compressor with dryer combines two essential components for industrial compressed air systems: a rotary screw air compressor and an air dryer. This integrated solution ensures high-quality compressed air while optimizing efficiency and performance.
.
.
- Certifications: CE.ISO 1461.TUV.EPA.
-
Customized: OEM/ODM Services
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Descriptions
Tank Mounted compressor with dryer is designed to deliver clean, dry compressed air by compressing air through rotary screw technology and removing moisture via an integrated dryer.

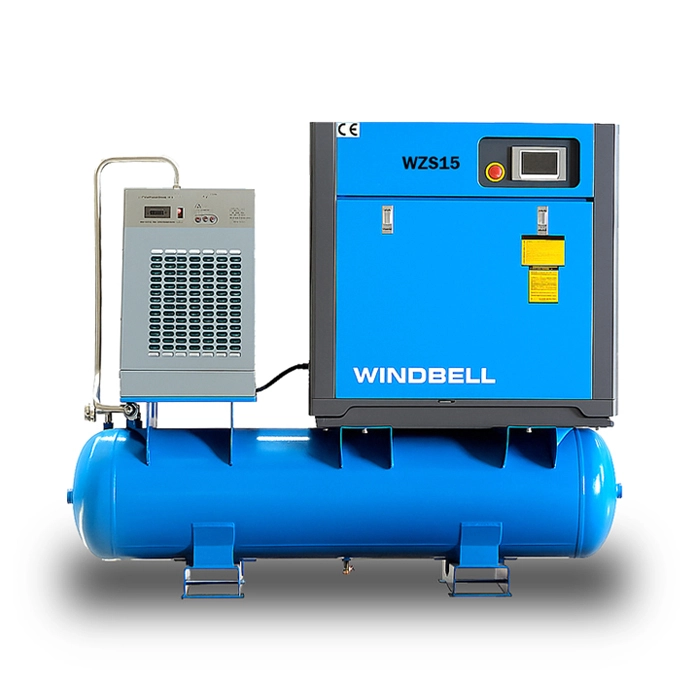

(Tank Mounted air compressor With Dryer)
图片1 拷贝
(Tank Mounted air compressor)
Key Functions
Moisture Removal
The built-in dryer effectively removes water vapor, preventing corrosion in pipelines and equipment while maintaining air quality for sensitive applications.
Versatile Applications
Suitable for various industrial settings, including wokshop, painting, pneumatic tools, and packaging, where dry, clean air is essential.
The Benefits Of Tank Mounted Air Compressor
●Compact design with turbo cooling system
●High efficiency screw element
●Directly drive, no slippage loses and energy loss
●Separate oil cooler and after cooler
●High efficiency screw element
●Directly drive, no slippage loses and energy loss
●Separate oil cooler and after cooler
COMPANY STRENGTH
●Heavy duty intake filter element
●Colourful HD touch screen control panel
●Continuous duty operation
●Low oil content in compressed air
●Colourful HD touch screen control panel
●Continuous duty operation
●Low oil content in compressed air
Product Details
Refrigerated Air Dryers
High-efficiency plate-fin heat exchanger;
Professional water removal function;
50% reduction in energy consumption;
Dew point 2-10°C;
Professional water removal function;
50% reduction in energy consumption;
Dew point 2-10°C;
High Efficiency Airend
● 5 year ,10000 hour warranty when continuouslyserviced at the recommended WNDBELL compressorfluid and filters.
● Equiped with premium quality bearing ( such as SKF). 2 year standard warranty.
● Equiped with premium quality bearing ( such as SKF). 2 year standard warranty.
Air Filter
● Ensuring Low Pressure Drop
● Efficient separation, low oil content ( less than 3ppm ).
● Efficient separation, low oil content ( less than 3ppm ).
Electrical Motor
● High output airend with advanced profile rotors.
● Equiped with premium quality bearing.
● Equiped with premium quality bearing.
Air Tank
● Design pressure 14.7 bar.
● Body thickness: 4mm Internal volume: 200L.
● Body thickness: 4mm Internal volume: 200L.
Oil air separator
● Low pressure drop.
● Efficient separation, low oil content.
● Efficient separation, low oil content.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Tank Capacity | Noise Level | Oulet | Weight | Dimension (mm) | |||||
| No. | bar | psi | cfm | m3/min | hp | kw | L | Db | Diameter | Kg | L | W | H |
| WZS2.2 | 8 | 116 | 11 | 0.32 | 3 | 2.2 | 110 | 54+/-3 | G1/2 | 180 | 1090 | 450 | 1110 |
| 10 | 145 | 9.5 | 0.28 | ||||||||||
| WZS3.0 | 8 | 116 | 16 | 0.44 | 4 | 3 | 110 | 55+/-3 | G1/2 | 190 | 1090 | 450 | 1110 |
| 10 | 145 | 14 | 0.39 | ||||||||||
| WZS4.0 | 8 | 116 | 20 | 0.58 | 5 | 4 | 110 | 57+/-3 | G1/2 | 200 | 1090 | 450 | 1110 |
| 10 | 145 | 18 | 0.52 | ||||||||||
| WZS5.5 | 8 | 116 | 27 | 0.76 | 7.5 | 5.5 | 110 | 59+/-3 | G1/2 | 215 | 1090 | 450 | 1110 |
| 10 | 145 | 24 | 0.68 | ||||||||||
| WZS7.5 | 7 | 100 | 42 | 1.2 | 10 | 7.5 | 200 | 63+/-3 | G3/4 | 450 | 1688 | 690 | 1643 |
| 8 | 116 | 39 | 1.1 | ||||||||||
| 10 | 145 | 35 | 1.0 | ||||||||||
| 12 | 174 | 28 | 0.8 | ||||||||||
| WZS11 | 7 | 100 | 64 | 1.8 | 15 | 11 | 200 | 64+/-3 | G3/4 | 500 | 1688 | 560 | 1428 |
| 8 | 116 | 57 | 1.6 | ||||||||||
| 10 | 145 | 53 | 1.5 | ||||||||||
| 12 | 174 | 46 | 1.3 | ||||||||||
| 13 | 189 | 42 | 1.2 | ||||||||||
| WZS15 | 7 | 100 | 92 | 2.6 | 20 | 15 | 200 | 64+/-3 | G3/4 | 550 | 1688 | 560 | 1428 |
| 8 | 116 | 85 | 2.4 | ||||||||||
| 10 | 145 | 74 | 2.1 | ||||||||||
| 12 | 174 | 64 | 1.8 | ||||||||||
| 16 | 232 | 46 | 1.3 | ||||||||||
| WZS22 | 7 | 100 | 130 | 3.7 | 30 | 22 | 300 | 65+/-3 | G1 | 950 | 2100 | 820 | 1700 |
| 8 | 116 | 124 | 3.5 | ||||||||||
| 10 | 145 | 110 | 3.1 | ||||||||||
| 12 | 174 | 95 | 2.7 | ||||||||||
| 16 | 232 | 85 | 2.4 | ||||||||||
FAQ
1
Can your company support customer's LOGO or color OEM?
Windbell supports logo, color OEM production.
2
How can your company guarantee the quality of the products?
Windbell has CE, TUV, SGS certificates and has strict standards for production, testing, and delivery, ensuring that each screw air compressor can be delivered to customers with high standards.
