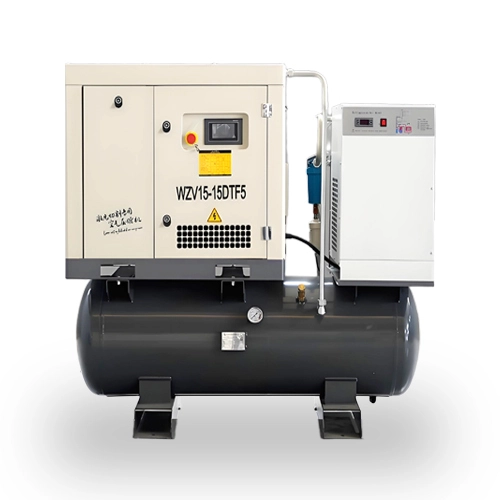

Air Compressor For Laser Cutting Machine
Product Descriptions
Assist Gas: Compressed air is used as an assist gas to blow away molten metal and debris during cutting, resulting in cleaner cuts and reduced burn marks.
Optics Protection: Maintains positive pressure in the laser head to prevent dust and particles from contaminating the lens.
Cooling Support: Helps dissipate heat from the cutting area for improved edge quality and faster processing speeds.
Compliant with ISO 8573 Standard
● Residual oil measurement – OlL-Check 400
Continuously and accurately measure the residual oil content in the form of steam from 0.001 mg/m³ to 2.5 mg/m³ (ISO 8573).
● Particle counter PC 400
The high-precision optical particle counter PC 400 can measure particles as low as 0. 1 um in size (ISO 8573).
● Residual humidity – dew point sensor FA 510
FA 510 can measure the pressure dew point up to – 80℃td.
Application
Structure Of WZS Air Compressor
Product Video
The Benefits Of 4 In 1 Air Compressor
Product Details
Refrigerated Air Dryers
High-efficiency plate-fin heat exchanger;
Professional water removal function;
50% reduction in energy consumption;
Dew point 2-10°C;
High Efficiency Airend
● 5 year ,10000 hour warranty when continuouslyserviced at the recommended WNDBELL compressorfluid and filters.
● Equiped with premium quality bearing ( such as SKF). 2 year standard warranty.
Air Filter
● Ensuring Low Pressure Drop
● Efficient separation, low oil content ( less than 3ppm ).
Electrical Motor
● High output airend with advanced profile rotors.
● Equiped with premium quality bearing.
Air Tank
● Design pressure 14.7 bar.
● Body thickness: 4mm Internal volume: 200L.
Oil air separator
● Low pressure drop.
● Efficient separation, low oil content.
Technical Parameters
| Model | Working pressure | Capacity FAD | Motor Power | Tank Capacity | Noise Level | Oulet | Weight | Dimension (mm) | |||||
| No. | bar | psi | cfm | m3/min | hp | kw | L | Db | Diameter | Kg | L | W | H |
| WZS7.5 | 7 | 100 | 42 | 1.2 | 10 | 7.5 | 200 | 63+/-3 | G3/4 | 450 | 1688 | 690 | 1643 |
| 8 | 116 | 39 | 1.1 | ||||||||||
| 10 | 145 | 35 | 1.0 | ||||||||||
| 12 | 174 | 28 | 0.8 | ||||||||||
| WZS11 | 7 | 100 | 64 | 1.8 | 15 | 11 | 200 | 64+/-3 | G3/4 | 500 | 1688 | 560 | 1428 |
| 8 | 116 | 57 | 1.6 | ||||||||||
| 10 | 145 | 53 | 1.5 | ||||||||||
| 12 | 174 | 46 | 1.3 | ||||||||||
| 13 | 189 | 42 | 1.2 | ||||||||||
| WZS15 | 7 | 100 | 92 | 2.6 | 20 | 15 | 200 | 64+/-3 | G3/4 | 550 | 1688 | 560 | 1428 |
| 8 | 116 | 85 | 2.4 | ||||||||||
| 10 | 145 | 74 | 2.1 | ||||||||||
| 12 | 174 | 64 | 1.8 | ||||||||||
| 16 | 232 | 46 | 1.3 | ||||||||||
| WZS22 | 7 | 100 | 130 | 3.7 | 30 | 22 | 300 | 65+/-3 | G1 | 950 | 2100 | 820 | 1700 |
| 8 | 116 | 124 | 3.5 | ||||||||||
| 10 | 145 | 110 | 3.1 | ||||||||||
| 12 | 174 | 95 | 2.7 | ||||||||||
| 16 | 232 | 85 | 2.4 | ||||||||||
